TEFLON LINED DIAPHRAGM VALVE
Features of Valve | |
● SKY PFA lined diaphragm valve can be used for almost every liquid cause of durable PFA Lining, andit has no corrosive action by liquid. | |
● SKY PFA lined diaphragm valve is safe from a chemical reaction and an effluent of impurities, it is atranslucent and high purity grade body. | |
● SKY PFA lined diaphragm valve have exceptional heat resistance than normal plastic valves. It can beused wide service temperature range. | |
● SKY PFA lined diaphragm valve is easy to open-colse than the other valves, because it has non stickcharicteristics that prevent minimize the effect of friction. | |
● SKY PFA lined diaphragm valve is able to control the flow in process that requires a fine works. It is alsoeasy to sampling. |
Applications and Specifications of Valve |
Applications Semiconductor / LCD chemical manufacturing Petrochemistry Polysilicon / silicon Steel manufacturing plant/ paper manufacturing Chemical plant Food and medicine | Specifications Model : SKY PFA lined diaphragm valve Size: 15A(1/2") -100A(4") Dimension : Table(P.5) Flange standard: JIS10K/ 150lbs/Etc. Temperature range : -30°C -10o·c Maximum pressure : 1.5MPa |
LINING MATERIAL PROPERTIES TABLE |

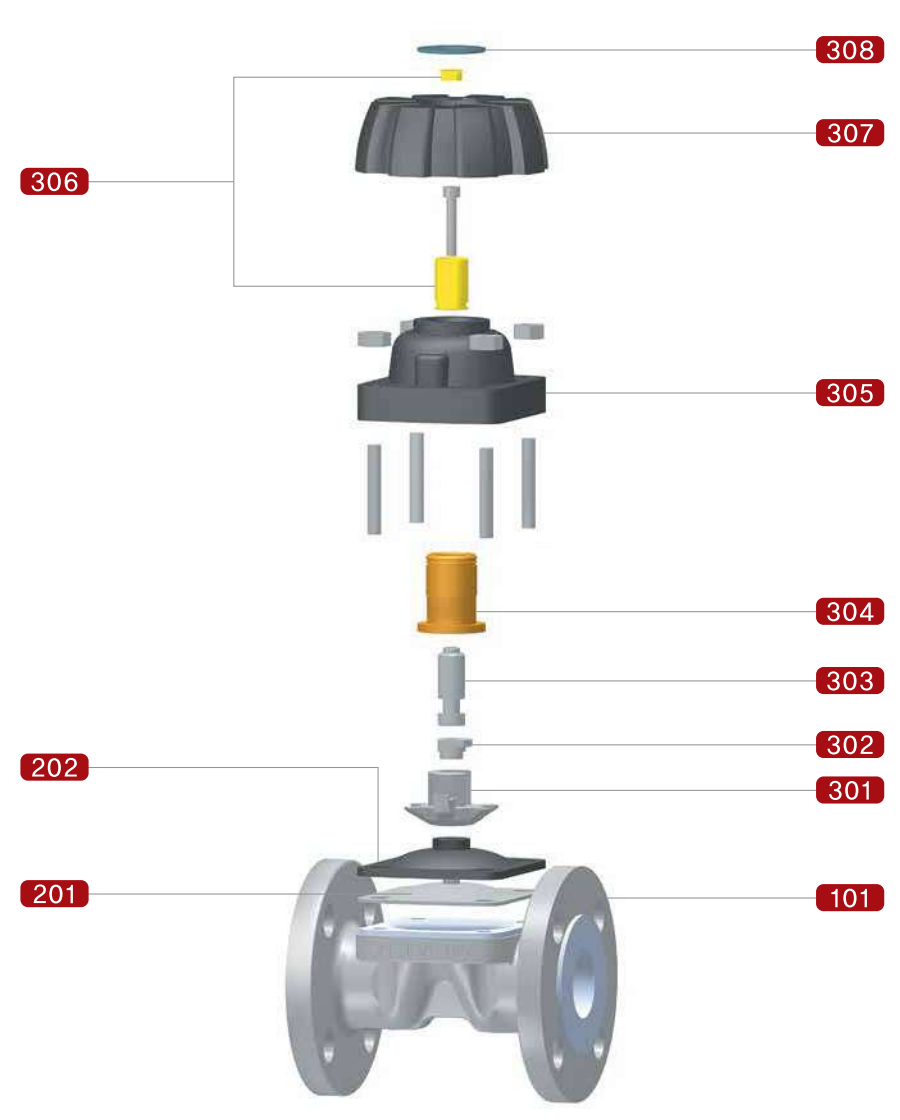

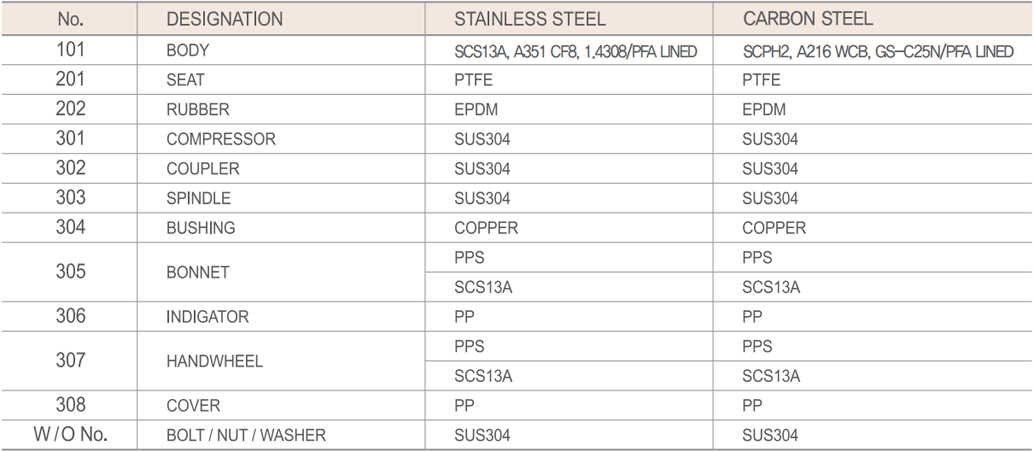

EXPLODED VIEW AND MATERIALS |
→ CLICK TO DOWNLOAD K2N_PFA_lined_diaphragm_valve.PDF
