TEFLON LINED BALL VALVE
Features of Valve | |
● SKY PFA lined ball valve can be used for almost every liquid cause of derable PFA Lining,and it has no corrosive action by liquid. | |
● SKY PFA lined ball valve is safe from a chemical reaction and an effluent of impurities,it is a translucent and high purity grade body. | |
● SKY PFA lined ball valve have exceptional heat resistance than normal plastic valves.It can be used wide service temperature range. | |
● SKY PFA lined ball valve is easy to open-colse than the other valves,because it has non stick charicteristics that prevent minimize the effect of friction. | |
● SKY PFA lined ball valve have high flow rate because of the same as pipe size and keeps straight design. |
Applications and Specifications of Valve |
Applications Semiconductor I LCD chemical manufacturing Petrochemistry Polysilicon / silicon Steel manufacturing plant/ paper manufacturing Chemical plant Food and medicine | Specifications Model : SKY PFA lined ball valve Size: 15A(1/2") -150A(6") Dimension : Table(P.5) Flange standard: JIS10K/ 150lbs/Etc. Temperature range : -30°C -1 so·c Maximum pressure : 1.5MPa |
LINING MATERIAL PROPERTIES TABLE |

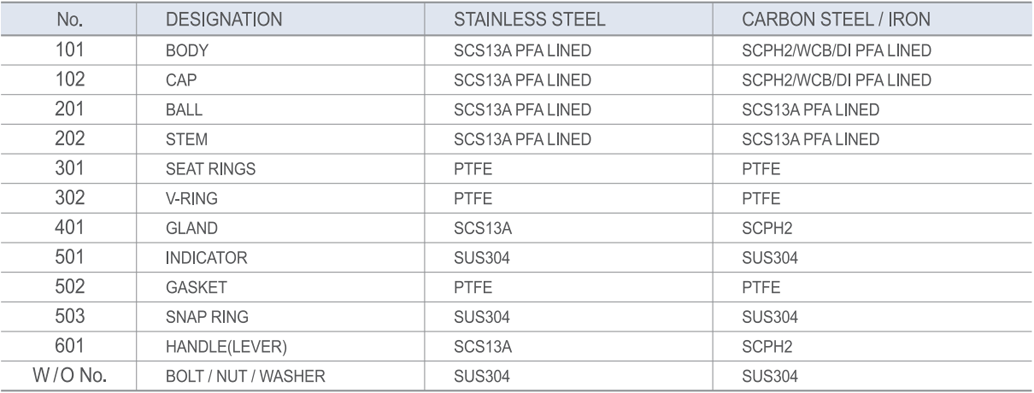

EXPLODED VIEW AND MATERIALS |
DIMENSIONS |
ORDERING INFORMATION |
AUTOMATED BALL VALVE |
→ CLICK TO DOWNLOAD K2N_PFA_lined_ball_valve.PDF
